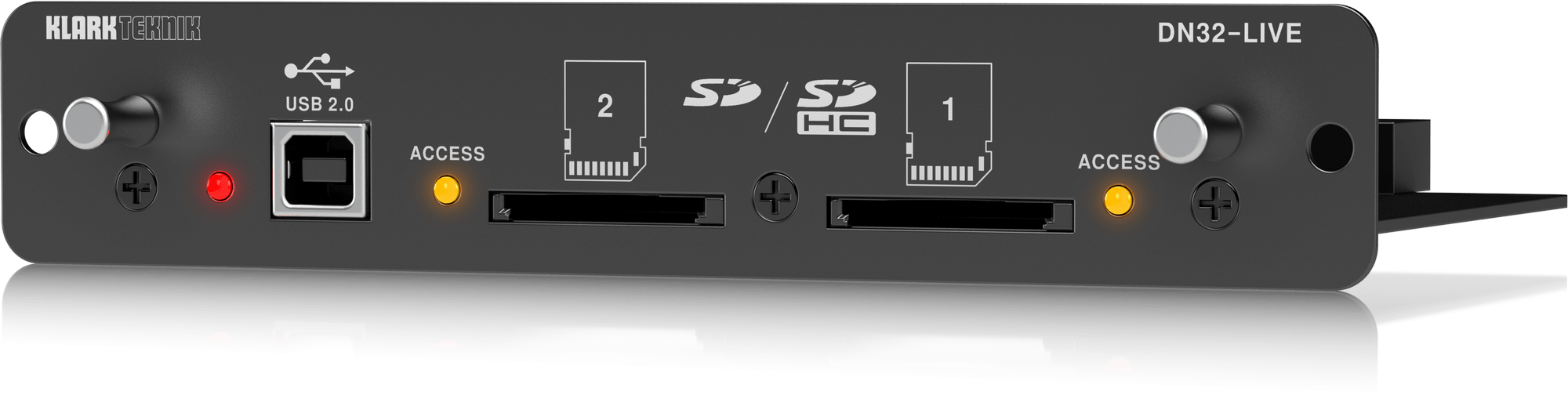

DN32-LIVE

SD/SDHC and USB 2.0 expansion card for M32 series consoles, for 32-channel live recording and playback

Where to buy DN32-LIVE (0606-ACY)

Record the whole show without bringing a laptop.

You mix the show on an M32, and the band asks for every channel for their live album. The DN32-LIVE card records up to 32 channels straight to SD/SDHC cards. No laptop needs to sit beside the desk.

Two slots, one unbroken session

Sessions land as uncompressed WAV files of 8, 16 or 32 channels. The sample rate is 44.1 or 48 kHz. When the first card fills, the session continues on the second under the same name. Up to 100 markers let you cue a song or a backing track from any point.

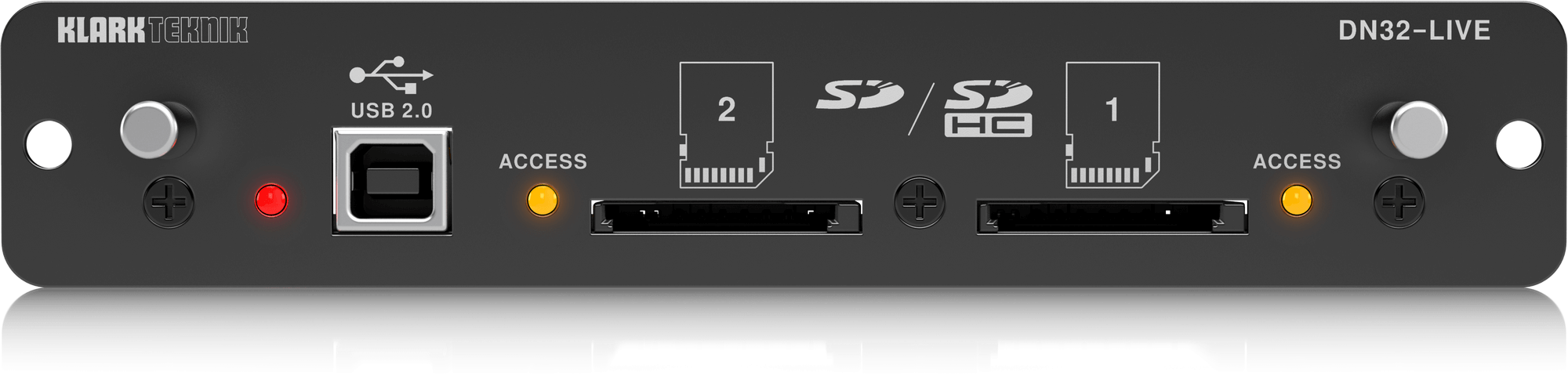

DN32-LIVE, image 2 of 3

Soundcheck after the band has gone

Over USB 2.0 the card is a 32 x 32 audio interface. Record all 32 inputs to a computer during a short line check. The performers can leave the stage while you play them back and refine the sound. Macs need no driver.

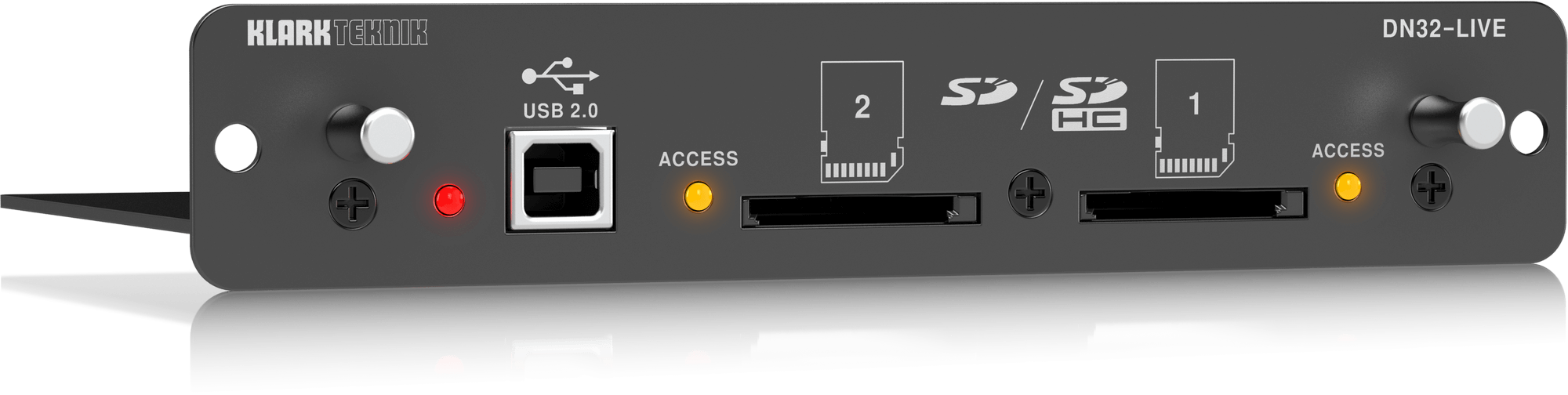

DN32-LIVE, image 3 of 3

A battery for the bad moment

An optional CR123A lithium cell protects file handling if the power fails. The SD slots work independently of the USB connection, so card recording does not depend on the computer.
