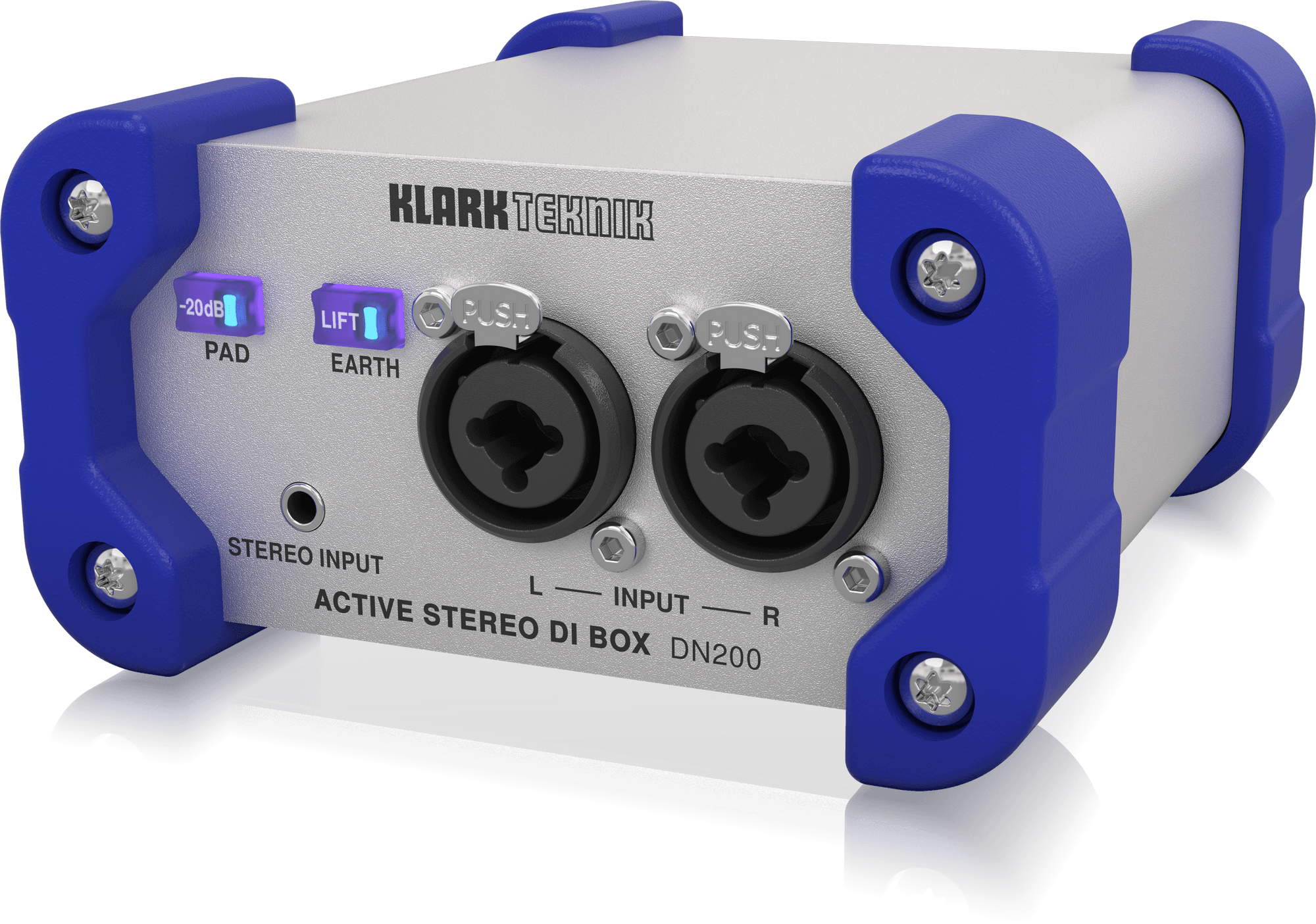

DN200 V2

2-channel active DI box with extended dynamic range, sum and split modes, a 20 dB pad and input/output ground separation

Where to buy DN200 V2 (0809-AAS)

Two sources in, balanced XLR out.

The desk wants balanced lines, and your stereo source arrives on unbalanced jacks or a 1/8" cable. The DN200 V2 sits between them. It sends two channels to balanced XLR outputs. Power comes as +48 V phantom power from your mixer or recording interface.

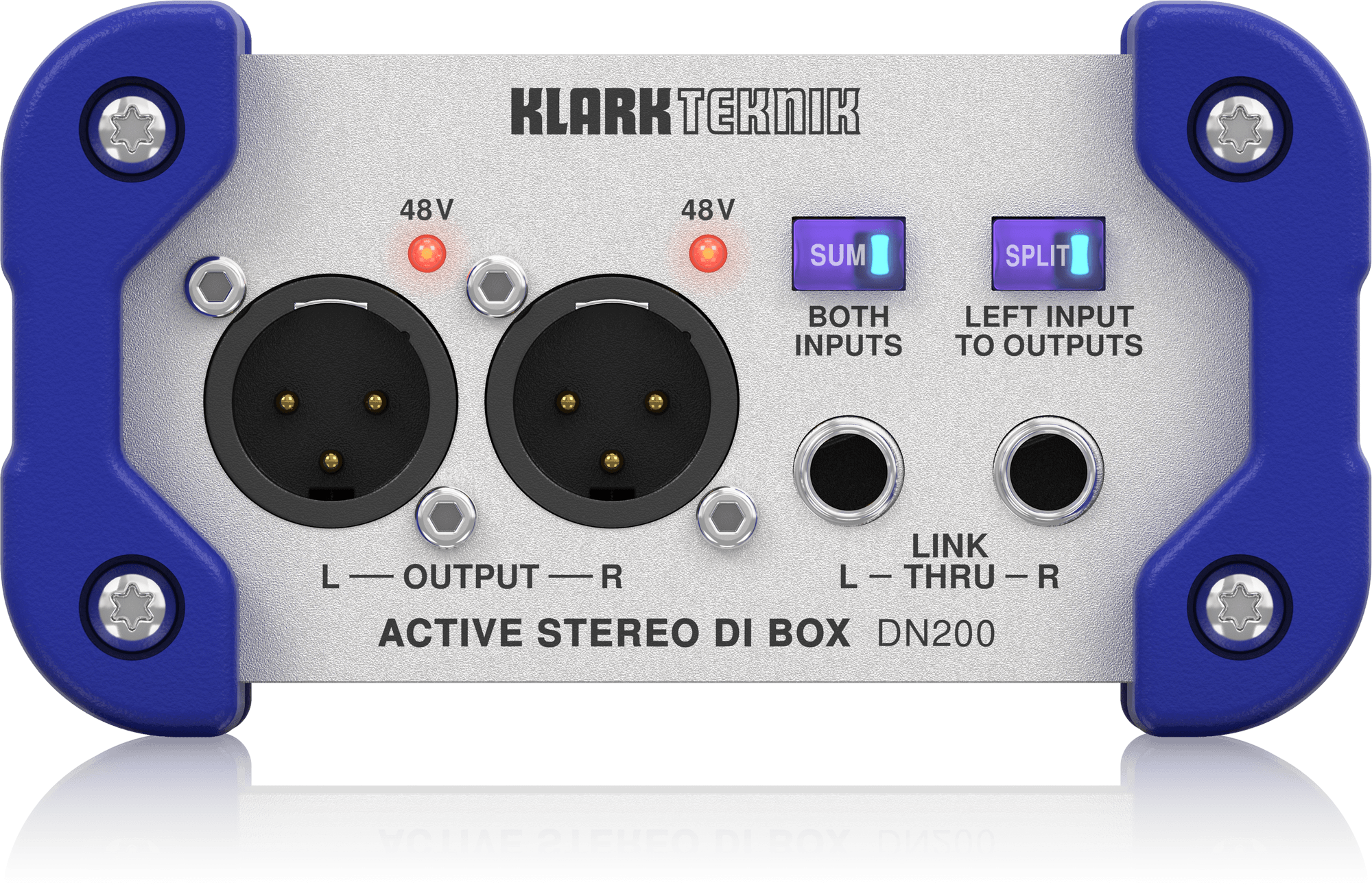

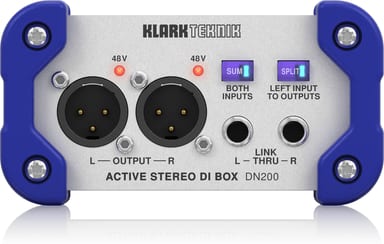

Sum, split or stay stereo

SUM adds the left and right inputs together and feeds both outputs. SPLIT sends the left input to the left and right outputs. For either mode, both output connections need phantom power. With one channel connected, the DN200 still works as a mono device.

DN200 V2, image 2 of 4

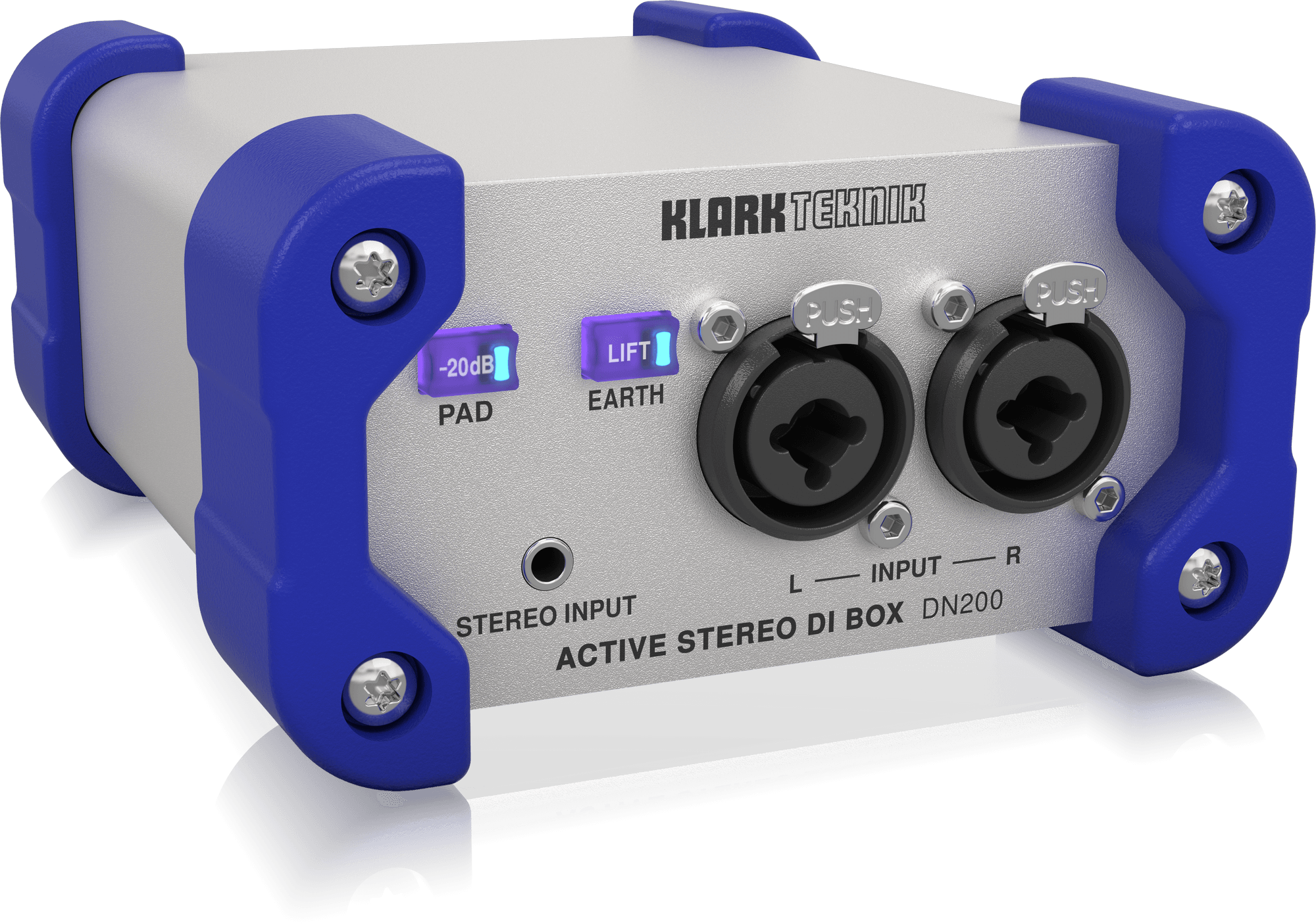

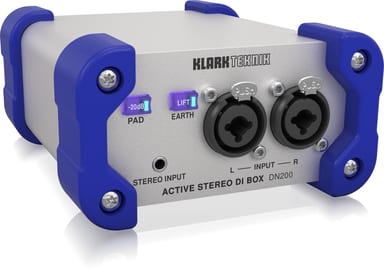

When signals run hot or the PA hums

For hot signals, PAD drops the input by 20 dB. EARTH splits the grounds of input and output. That can clear ground loops between gear on separate mains supplies. The 48V LED lights when the unit receives sufficient phantom power.

DN200 V2, image 3 of 4

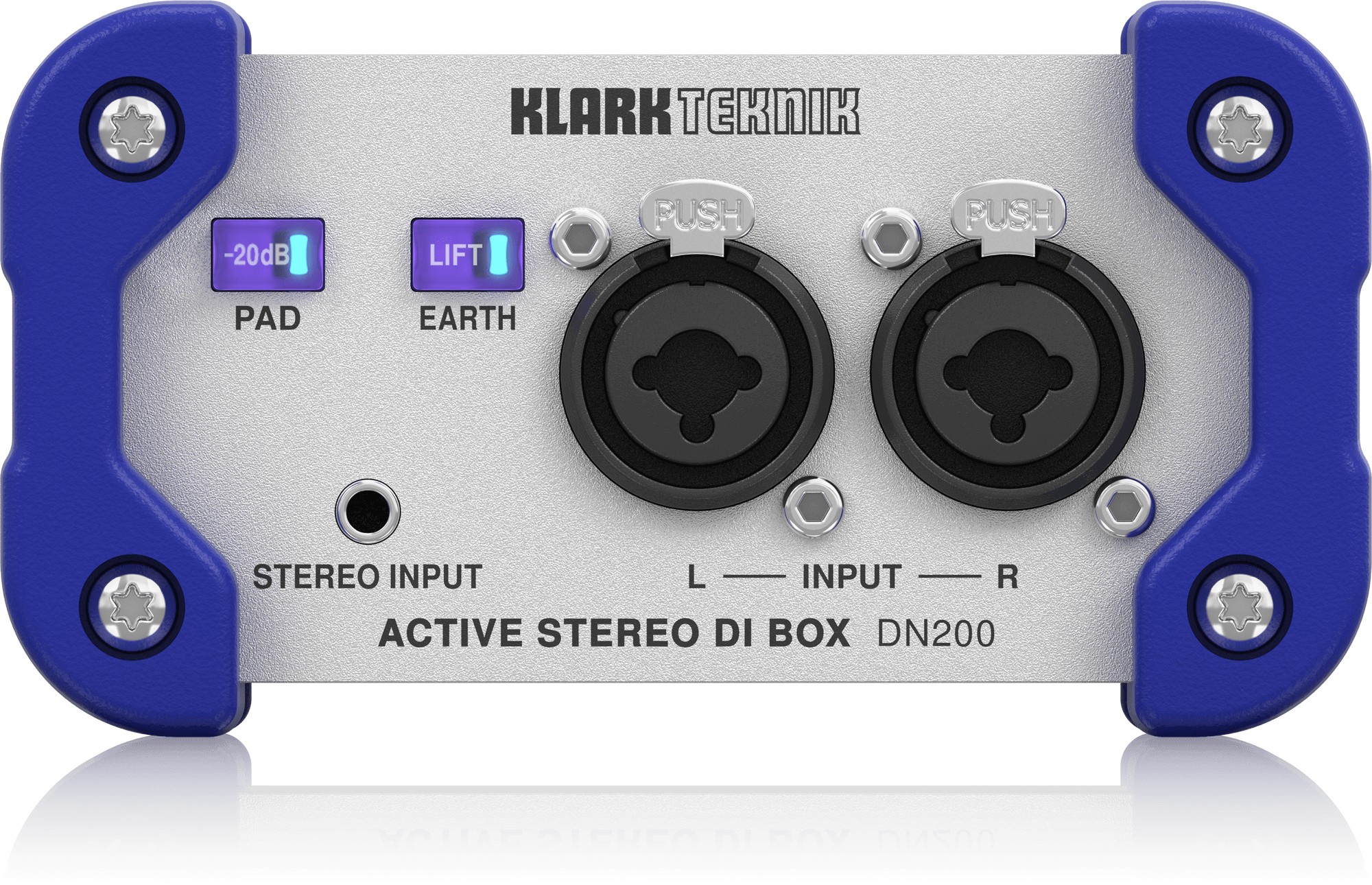

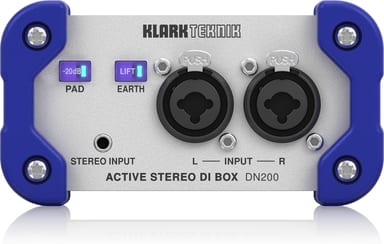

Inputs for each kind of source

The L/R inputs take balanced or unbalanced XLR or ¼" cables. LINK THRU sends the signals on over ¼" cables. A 1/8" stereo TRS jack takes a line-level source, with the L/R and LINK THRU jacks left unplugged. The box weighs 0.65 kg and responds from 20 Hz to 20 kHz, ±1 dB.

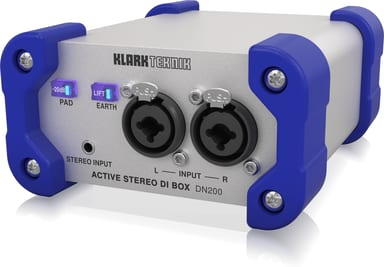

DN200 V2, image 4 of 4
